Devops

code go

學習Devops

List

  1. Use Kubernetes to deploy the environment EKS cluster
  2. Use Docker to build the image for program image
  3. Use gitOPS to build the CICD stream
  • CI:Git action
  • CD:GITOPS ArgoCD
  1. EC2 to push the website on domain with nginx to load balance
  2. Helm Chart to manage the environment

Flow Chart

Ingress control -> LoadBalance(DNS) -> Export

DockerFile編寫

  • base 當作基礎,使用gcr小化image
  • 需要依照部署環境build執行檔
    • amd or arm
  • example for linux
 docker buildx build --platform linux/amd64 -t peter123ouob/mdb:v1.2 .
FROM golang:1.23 AS base

WORKDIR /app

COPY go.mod .

RUN go mod download

COPY . .

RUN go build -o main .

FROM gcr.io/distroless/base

COPY --from=base /app/main .

EXPOSE 8089

CMD ["./main"]

build and push

docker build -t peter123ouob/mdb:v1 .
docker push peter123ouob/mdb:v1

Kubernetes邊寫

  • 使用manifest規格編寫,而不是直接部署在pod上,避免無法使用副本集控制器部署

    1. deployment
    apiVersion: apps/v1
kind: Deployment
metadata:
name: mdb
labels:
  app: mdb
spec:
replicas: 1
selector:
  matchLabels:
    app: mdb
template:
  metadata:
    labels:
      app: mdb
  spec:
    containers:
      - name: mdb
        image: peter123ouob/mdb:v1
        ports:
          - containerPort: 8089
    1. service
    apiVersion: v1
kind: Service
metadata:
name: mdb
labels:
  app: mdb
spec:
ports:
  - port: 80
    targetPort: 8089
    protocol: TCP
selector:
  app: mdb
type: ClusterIP
    1. Ingress
    apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: mdb
annotations:
  nginx.ingress.kubernetes.io/rewrite-target: /
spec:
ingressClassName: nginx
rules:
  - host: peterdefer0822.store
    http:
      paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name: mdb
              port:
                number: 80

創建cluster

  • 可以使用aws的cloudfront查看stack和log
 eksctl create cluster --name mdb-cluster --region us-east-1

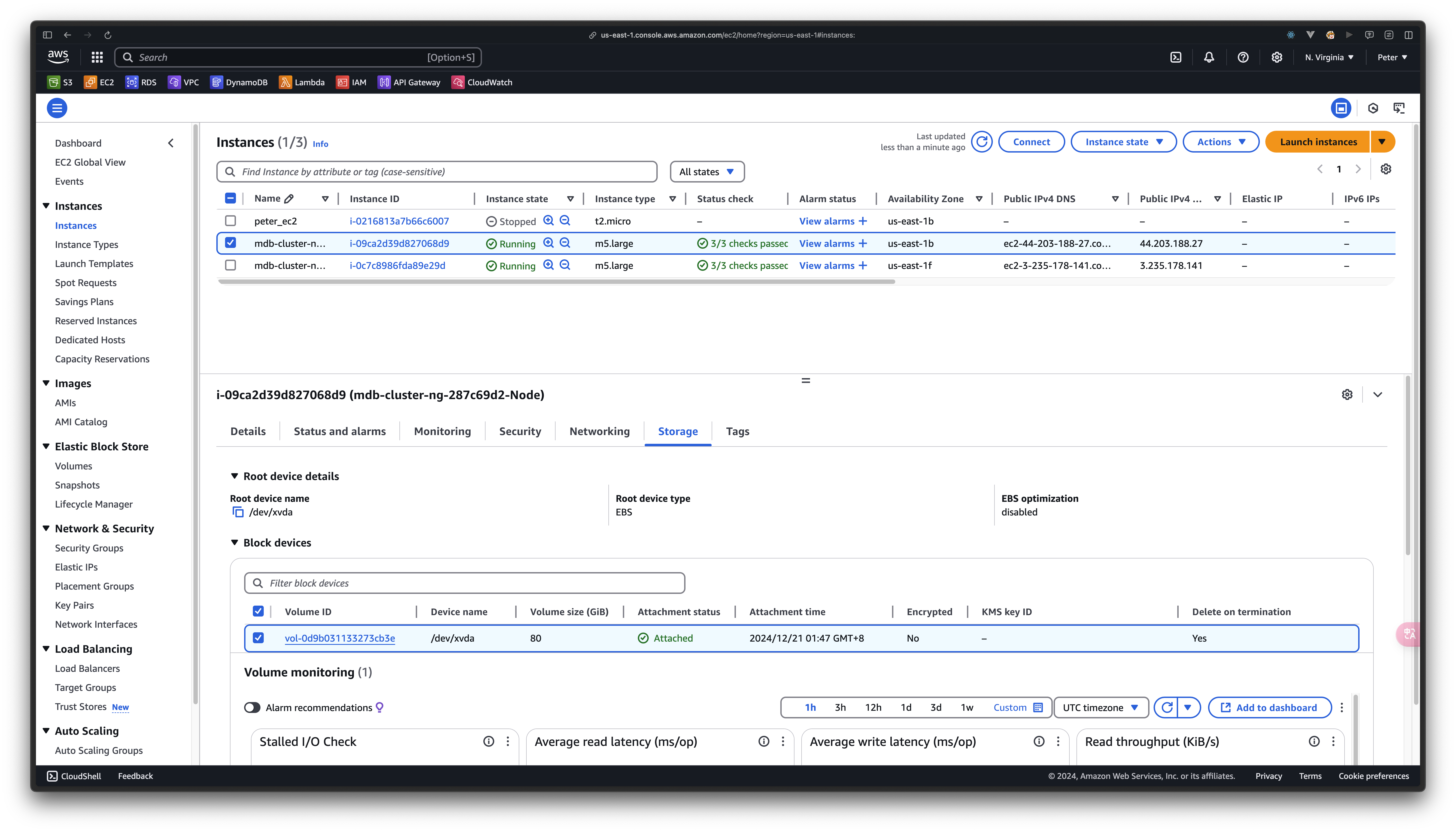

ec2

apply k8s

kubectl apply -f deployment.yaml
kubectl apply -f service.yaml
kubectl apply -f ingress.yaml

k8s get

kubectl get node # 查看node
kubectl get ing # 查看正在運行服務
kubectl get svc # 查看svc
kubectl get svc -n [namespace] # 查看特定namespace
kubectl get nodes -o wide
kubectl get logs [name from pods] # 查看logs
kubectl get deploy # 查看部署檔

更改node

kubectl edit svc mdb
  1. 將type從ClusterIP變為NodePort,目的是讓cluster產生的兩個ec2都能訪問
  2. 使用kubectl get pods拿到NodePort 映射的port
  3. 使用kubectl get nodes -o wide拿到外部訪問IP

Nginx control ingress

  • 安裝ingress control
 kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.12.0-beta.0/deploy/static/provider/aws/deploy.yaml
  • 查看獲得name
kubectl get pods -n ingress-nginx
  • edit
 kubectl get edit -n ingress-nginx-controller-6568cc55cd-gnpmp -n ingress-nginx

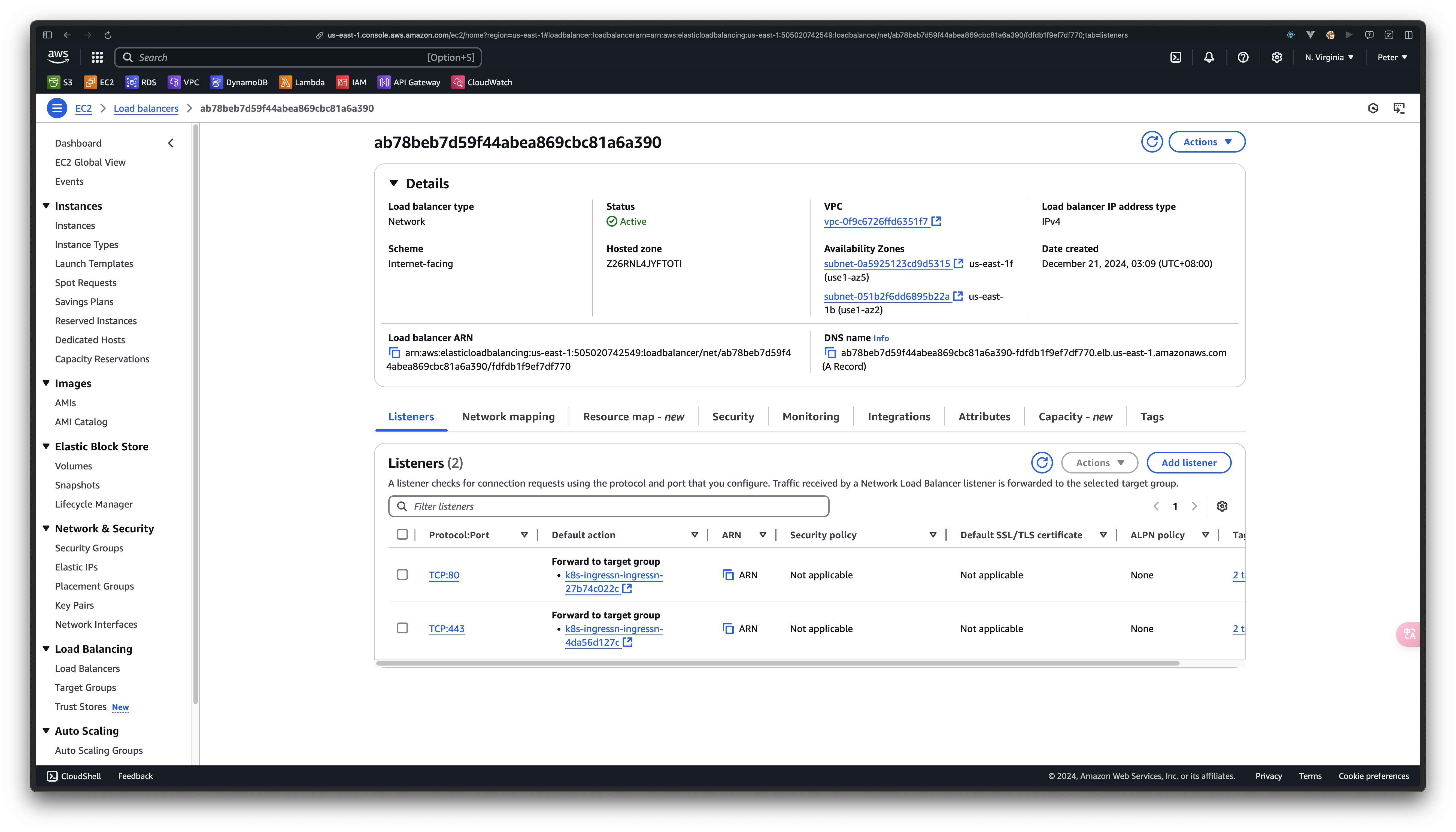

load balance

配置Nginx

  • 使用kubectl get ing 拿到Address訪問後發現是404,原因為配置ingress yaml時使用nginx映射到host
  • 因此需要拿到Address的IP並且將她映射到設定的host上才行
  1. netlookup Address
  2. sudo vim /etc/hosts 新增映射
  • example

44.123.22.1 helloworld.com

Helm

  • 使用helm可以將docker image的tag變成類似變數的形式,取代在deployment yaml下的硬編碼

安裝


brew install helm
helm version # 注意golang version

建立helm應用

helm create mdb-chart
cd helm

  • helm 中主要有三個檔案

    1. Chart yaml

      • 提供圖表數據,可以假定為元數據

    2. values yaml

    • 內容將被template當變數使用
    # values.yaml
replicaCount: 1

image:
  repository: peter123ouob/mdb
  pullPolicy: IfNotPresent
  tag: "10008891570"

ingress:
  enabled: false
  className: ""
  annotations: {}
  hosts:
    - host: chart-example.local
      paths:
        - path: /
          pathType: ImplementationSpecific

    1. template

      • 建議使用k8s的manifest取帶原先全部內容

    • 更改後的內容
    # deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: mdb
labels:
  app: mdb
spec:
replicas: 1
selector:
  matchLabels:
    app: mdb
template:
  metadata:
    labels:
      app: mdb
  spec:
    containers:
      - name: mdb
        image: peter123ouob/mdb:{{ .Values.image.tag }}
        ports:
          - containerPort: 8080

CICD

  • CI最後由Helm產生的版本資訊會被CD抓取並部署到k8s cluster

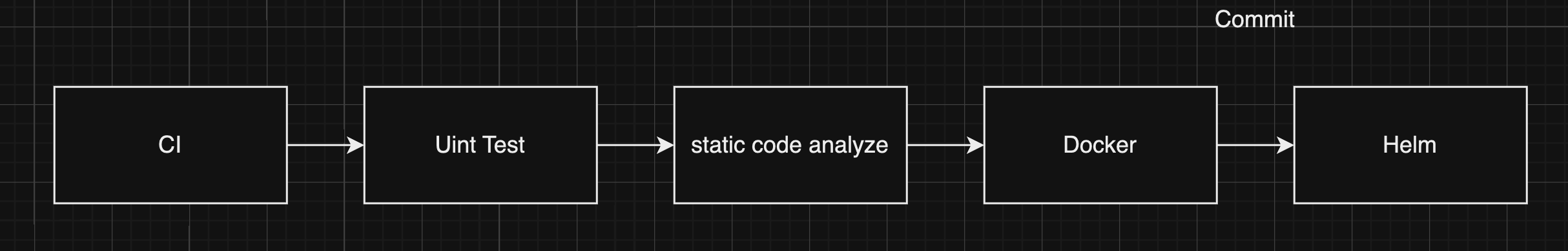

CI flowchart

ci

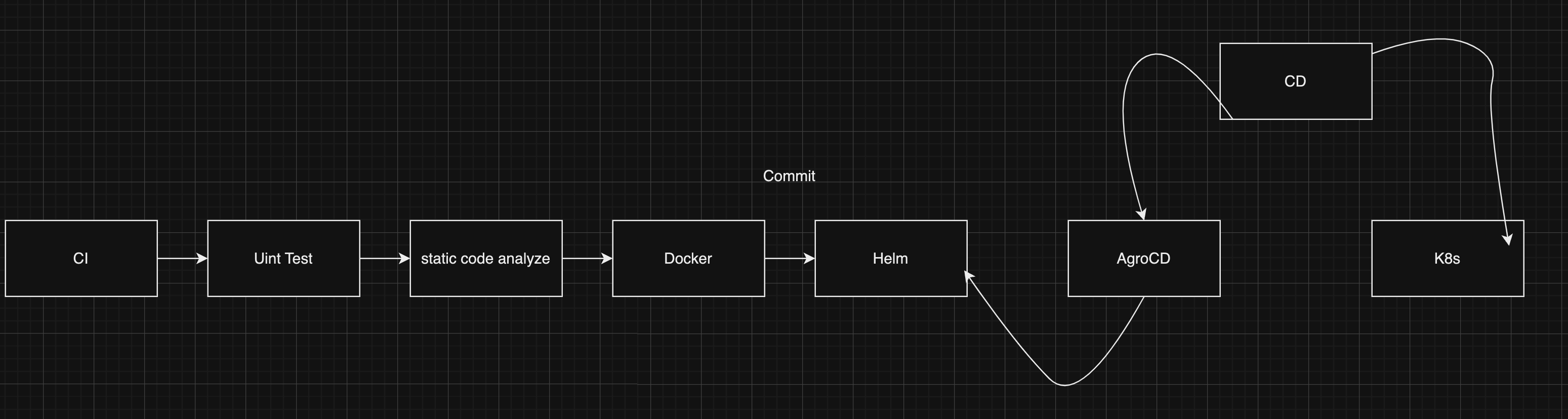

CD flowchart

cd

write the git action

name: CI

on:
  push:
    branches:
      - main
    paths-ignore:
      - "helm/**"
      - "k8s/**"
      - "README.md"
  pull_request:
    branches:
      - main

jobs:
  build:
    runs-on: ubuntu-latest

    steps:
      - name: Checkout repo
        uses: actions/checkout@v4
      - name: Set up Go 1.23
        uses: actions/setup-go@v4
        with:
          go-version: 1.22
      - name: Build
        run: go build -o mdb
      - name: Test
        run: go test ./...

  code-quality:
    runs-on: ubuntu-latest

    steps:
      - name: Checkout repo
        uses: actions/checkout@v4
      - name: Run golangci-lint
        uses: golangci/golangci-lint-action@v6
        with:
          version: v1.56.2

  push:
    runs-on: ubuntu-latest
    needs: build

    steps:
      - name: Checkout repository
        uses: actions/checkout@v4
      - name: Set up Docker Buildx
        uses: docker/setup-buildx-action@v3
      - name: Login to DockerHub
        uses: docker/login-action@v3
        with:
          username: ${{ secrets.DOCKERHUB_USERNAME }}
          password: ${{ secrets.DOCKERHUB_TOKEN }}
      - name: Build and Push action
        uses: docker/build-push-action@v6
        with:
          context: .
          file: ./Dockerfile
          push: true
          tags: ${{ secrets.DOCKERHUB_USERNAME }}/mdb:${{ github.run_id }}

  update-newtag-in-helm-chart:
    runs-on: ubuntu-latest
    needs: push

    steps:
      - name: Checkout repo
        uses: actions/checkout@v4
        with:
          token: ${{ secrets.TOKEN }}
      - name: Update tag in Helm chart
        run: |
          sed -i 's/tag: .*/tag: "${{ github.run_id }}"/' helm/mdb-chart/values.yaml
      - name: Commit and push changes
        run: |
          git config --global user.email "hellolinpeter@gmail.com"
          git config --global user.name "peterouob"
          git add helm/mdb-chart/values.yaml
          git commit -m "Update tag in Helm chart"
          git push
  • 如果成功的話可以在DockerHub中找到最新創建的image且tag和最新版本的repo中helm的Values yaml裡面的一樣

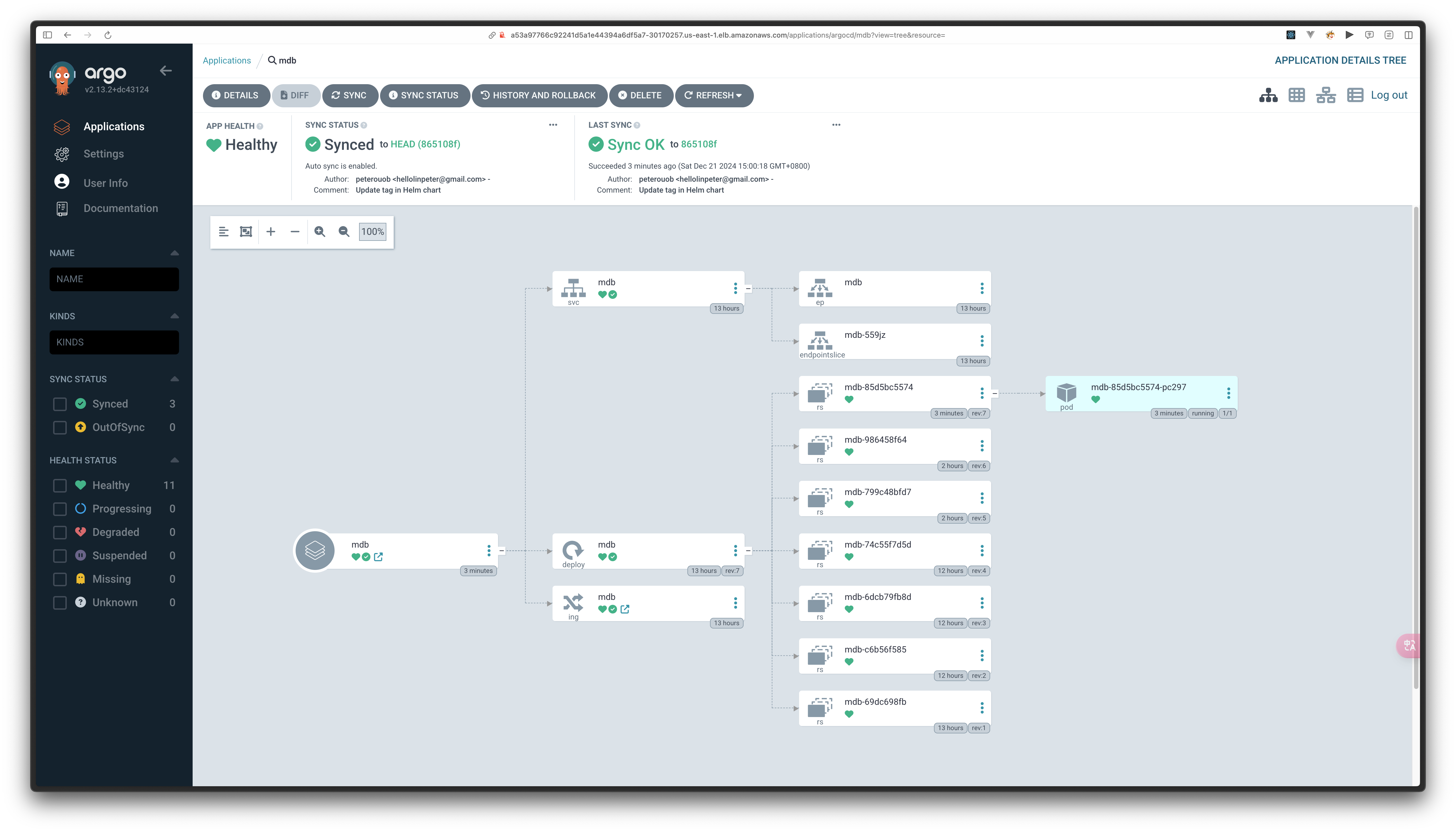

ArgoCD

install

kubectl create namespace argocd
kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml

access UI

kubectl patch svc argocd-server -n argocd -p '{"spec": {"type": "LoadBalancer"}}'

Get the Loadbalancer service IP

  • 獲得ip後要等LoadBalance配置完成才能存取
kubectl get svc argocd-server -n argocd

login ArgoCD

username:admin
password另外獲得

get password

kubectl get secrets -n argocd # 獲得服務
kubectl edit secret argocd-initial-admin-secret -n argocd # 查看服務設定檔
echo [password] | base64 --decode # 解碼密碼後的才是

配置ArgoCD

  • 設置selfHeal是由於我們syncPolicy設為automated,但假設今天手動訪問部署檔並更動,發生錯誤時ArgoCD會自動修復
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: mdb
  finalizers: []
spec:
  destination:
    name: ""
    namespace: default
    server: https://kubernetes.default.svc
  source:
    path: helm/mdb-chart
    repoURL: https://github.com/peterouob/gocloud.git
    targetRevision: HEAD
    helm:
      valueFiles:
        - values.yaml
  sources: []
  project: default
  syncPolicy:
    automated:
      prune: false
      selfHeal: true

argocd
